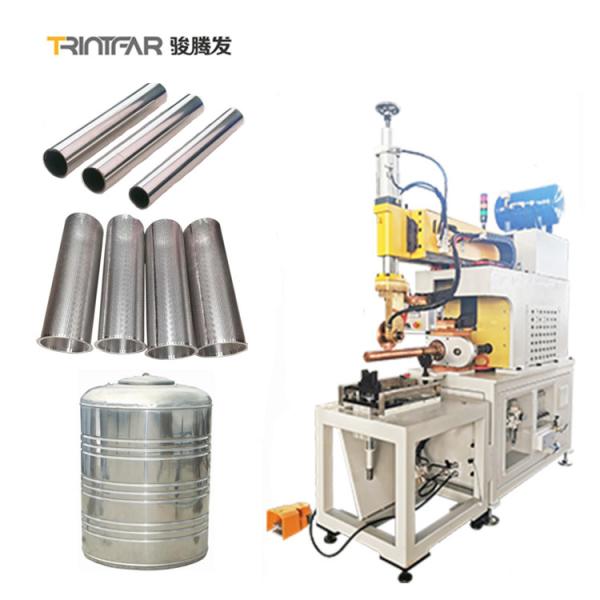

Longitudinal Seam Welder Kitchen Tank Longitudinal Welding Machine 200KVA

Name: Longitudinal Seam Welder Kitchen Tank Longitudinal Welding Machine 200KVA
Brand: TRINTFAR
Price: 3000 USD

Brand Name : TRINTFAR

Model Number : FM-25

Certification : CE,ISO,CE/CCC

Place of Origin : China

MOQ : 1

Price : USD 3000-5000 set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500 Per year

Delivery Time : Within 90 days of the final payment

Packaging Details : wooden box

Name : New Longitudinal Seam Welder Seam Welding Machine Price

Power(W) : 50KVA-200KVA

Welding speed : 0.6-2M/min

Application : Welding Can, Tank, Etc

Dimensions : 300-900mm

Usage : Seam Welding

Weight : 200kg

Voltage : 220V/380V

Contact Now

New Longitudinal Seam Welder Seam Welding Machine Price

DESCRIPTION

Mainly used for the high quality and low distortion automatic longitudinal welding of the metallic cylinders and aligned plates made with stainless steel, iron, aluminum and brass, etc;

1. Adopted keyboard type copper pressing mechanism, to get the regular and stable clamping and cooling effect;

2. Special designed back protective copper block and molding slot, to assure the stable gas shield and achieve double side forming in single side welding;

3. Machine can adopt PLC or Relay integrated control as requirement;

4. Torch moving driven by DC motor , welding speed stepless adjustable;.

5. Apply to cooperate welding with TIG, MIG, MAG and Plasma-Arc welding source.

Specification

Item Model	Maximum Short Current KA	Rated Duty Cycle %	Secondary Voilage V	Rated Power KVA	Electrode Pressure N	Electrode Stroke mm	Cooling Water Lmim
FM-20	20	50	≈9.8	≤50	4700	80	24
FM-25	25	50	≈9.8	≤70	4700	80	24
FM-40	40	50	≈11.6	≤120	7300	80	30
FM-60	60	50	≈11.6	≤160	12000/18000	100	50
FM-80	80	50	≈11.6	≤240	12000/18000	100	50
FM-120	120	50	≈11.6	≤300	18000	100	60

Longitudinal Seam Welder Kitchen Tank Longitudinal Welding Machine 200KVA
