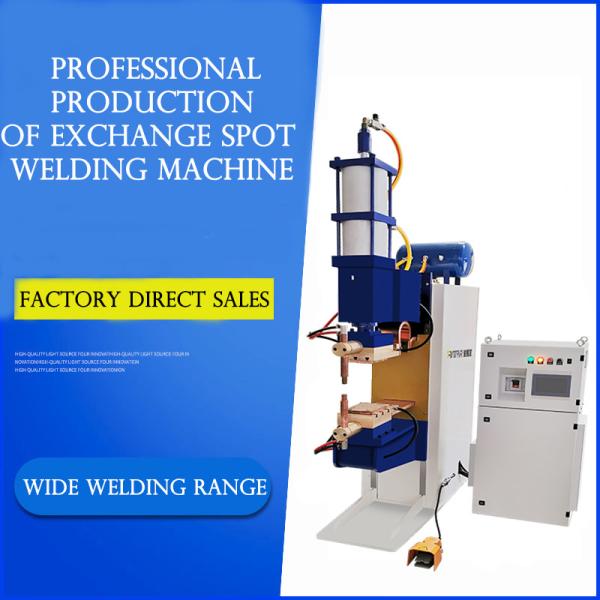

80KVA Stainless Steel Projection Welding Equipment Foot Operated Spot Welder

Name: 80KVA Stainless Steel Projection Welding Equipment Foot Operated Spot Welder
Brand: TRINTFAR
Price: 1000 USD

Buy cheap 80KVA Stainless Steel Projection Welding Equipment Foot Operated Spot Welder product

Brand Name : TRINTFAR

Model Number : MD-25

Certification : CE,ISO

Place of Origin : Chine

MOQ : 1

Price : USD 1000-3000 set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500 per year

Delivery Time : Within 90 days of the final payment

Packaging Details : wooden box

Product Name : stainless steel foot Projection welding machine

Electrode Stroke : 50-100mm

Cooling Water : 20-60L/min

Maximum short current : 80KVA

Voltage : 380v/220v

Application : Suitable For Spot Welding

Warranty : 1 Year

Contact Now

stainless steel foot Projection welding machine

Theme of the Proposal

Under the operation of transformer, pneumatic AC pulse spot welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generate high heat to make the work pieces in the molten condition. Thus, the purpose of welding the two pieces of work pieces is achieved.

The power of the pneumatic AC pulse spot welder that we produce is from 3KVA to 600KVA.

It can be used to weld 10mm of iron and metals like stainless steel. It is applicable to all kinds of hardware.

Design Concept

The Welding spots are good in looking, firm, and stable and reliable. Well consistency of welding spots.
Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.
Design Working Life: 8-10 years

Specification

Item Model	Maximum Short Current KA	Rated Duty Cycle %	Secondary Voilage V	Rated Power KVA	Electrode Pressure N	Electrode Stroke mm	Cooling Water Lmim
MD-10T	10	50	≈9.8	≤20	1200	50	20
MD-20	20	50	≈9.8	≤50	4700	80	24
MD-25	25	50	≈9.8	≤70	4700	80	24
MD-40	40	50	≈11.6	≤120	7300	80	30
MD-60	60	50	≈11.6	≤160	12000/18000	100	50
MD-80	80	50	≈11.6	≤240	12000/18000	100	50
MD-120	120	50	≈11.6	≤300	18000	100	60
