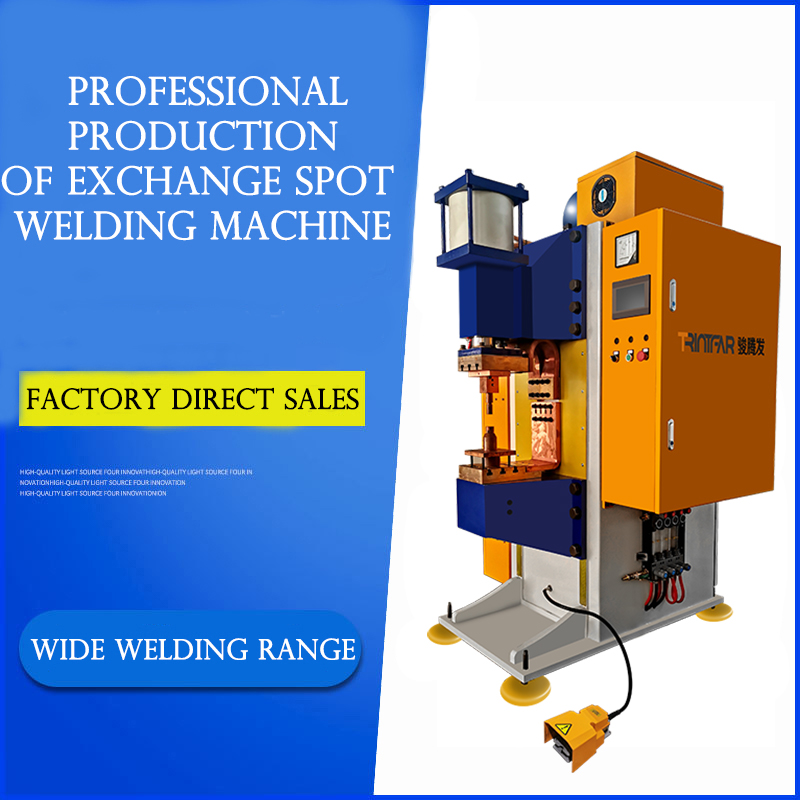

50KVA Resistance Welding Machine Door Panels Stainless Steel Metal Foot Operated Spot Welder

Name: 50KVA Resistance Welding Machine Door Panels Stainless Steel Metal Foot Operated Spot Welder
Brand: TRINTFAR
Price: 5000 USD

Brand Name : TRINTFAR

Model Number : DR-500

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 5000-8000 set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500 per year

Delivery Time : Within 90 days of the final payment

Packaging Details : wooden box

Applicable Industries : Manufacturing Plant, Construction works , Other

Core Components : PLC

Rated Capacity : 50 KVA

Max. Welding Thickness : 10mm+10mm

Maximum short current : 10KA-120KA

Dimensions : 500*900*1600 mm

After Warranty Service : Online support

Contact Now

Automatic Ac Pneumatic Capacitor Discharge Door Panels Stainless Steel Pneumatic Metal Foot Pedal Energy Storage Welding Machine

Suitable for automatic spot welding. Welding device, one transformer, interlocking spot welding device, one head is welded on the blade, the other head is welded under the blade, it can also be used for spot welding of two products at the same time, controlled by microcomputer program, the welding quality is reliable and firm, and the operation is simple and convenient.

Specification

Item Model	Power input	Interior input power	Capacitance	Energy storage	Arm length	Electrode stroke	Electrode pressure	Weight


	V	KVA	Μf	J	mm	mm	N	Kg
DR-500	380	2	5000	500	120	50	1200	200
DR-1500	380	3	15000	1500	380	80	3000	450
DR-3000	380	5	30000	3000	380	80	4700	800
DR-5000	380	7	50000	5000	380	80	7300	800
DR-8000	380	10	80000	8000	380	80	7300	1000
DR-10000	380	12	100000	10000	450	100	12000	1200

50KVA Resistance Welding Machine Door Panels Stainless Steel Metal Foot Operated Spot Welder
