Compressor Door Locks Hanging Spot Welder Projection Semi Automatic Welding Machine

Name: Compressor Door Locks Hanging Spot Welder Projection Semi Automatic Welding Machine
Brand: TRINTFAR
Price: 1000 USD

Brand Name : TRINTFAR

Model Number : MD-20

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 1000-3000 Set

Payment Terms : L/C, D/A, D/P, D/P, T/T

Supply Ability : 500 Per year

Delivery Time : Within 90 days of the final payment

Packaging Details : wooden box

Product Name : Compressor Door Locks Frequency Inverter Hanging Portable Projection Semi Automatic Spot Welding Machinery

Electrode Stroke : 50-100mm

Condition : NEW

Standard : CE/CCC/ISO

Rated duty cycle : 50%

Maximum short current : 10KA-120KA

After-sales Service Provided : Video technical support

Size : 600x1500x1700mm

Contact Now

Compressor Door Locks Frequency Inverter Hanging Portable Projection Semi Automatic Spot Welding Machinery

APPLICATION

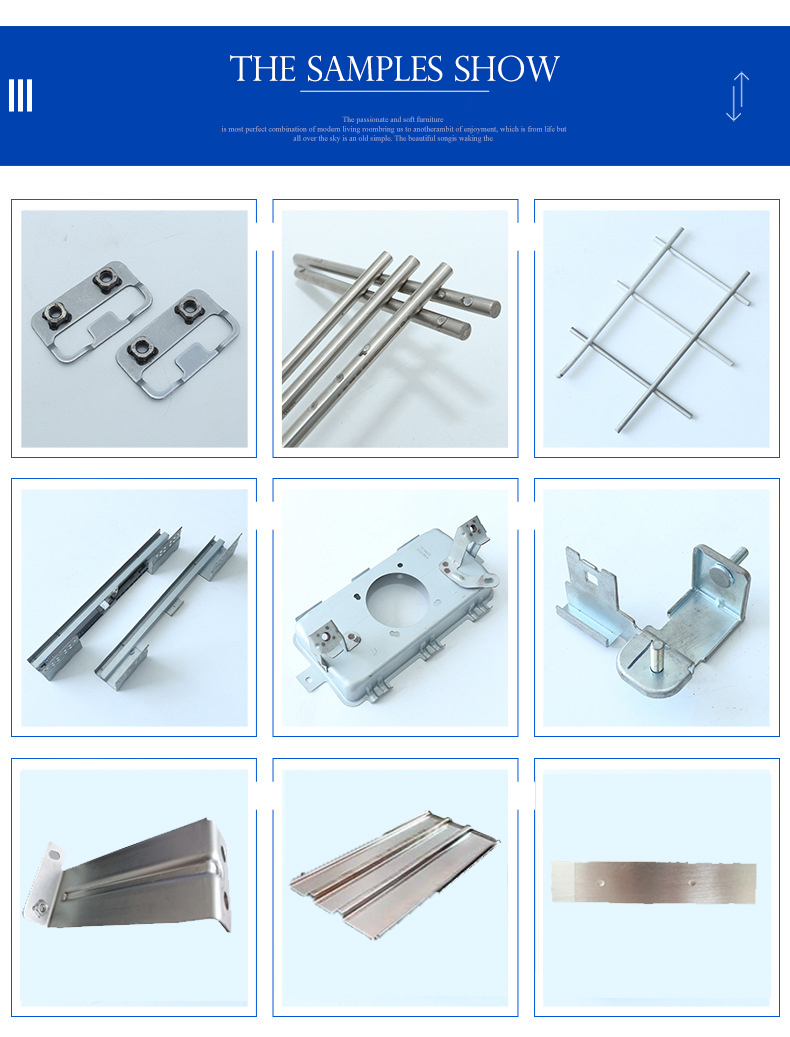

Welding of all kinds of metal product, wire product, etc.

FEATURE

1. Heavy Duty welded Steel Frame.
2. Air Operated.
3. Operator selectable Single/Double Stage Footswitch.
4. Convenient manually operated Tip Alignment Valve for quick set-up.
5. Rugged Ram design provides positive alignment and trouble free life.
6. Solid Copper Arms with Steel End Caps.
7. Ejector-type water-cooled Electrode Holders with Tips.
8. Wide range of Standard and Optional Controls.

DESCRIPTION

This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

The power of the pneumatic AC pulse spot welder that we produce is from 3KVA to 600KVA. It can be used to weld 10mm of iron and metals like stainless steel. Applicable to all kinds of hardware.

Specification

Item Model	Maximum Short Current KA	Rated Duty Cycle %	Secondary Voilage V	Rated Power KVA	Electrode Pressure N	Electrode Stroke mm	Cooling Water Lmim
MD-10T	10	50	≈9.8	≤20	1200	50	20
MD-20	20	50	≈9.8	≤50	4700	80	24
MD-25	25	50	≈9.8	≤70	4700	80	24
MD-40	40	50	≈11.6	≤120	7300	80	30
MD-60	60	50	≈11.6	≤160	12000/18000	100	50
MD-80	80	50	≈11.6	≤240	12000/18000	100	50
MD-120	120	50	≈11.6	≤300	18000	100	60
